杠杆表可选配件

生成PDF下载

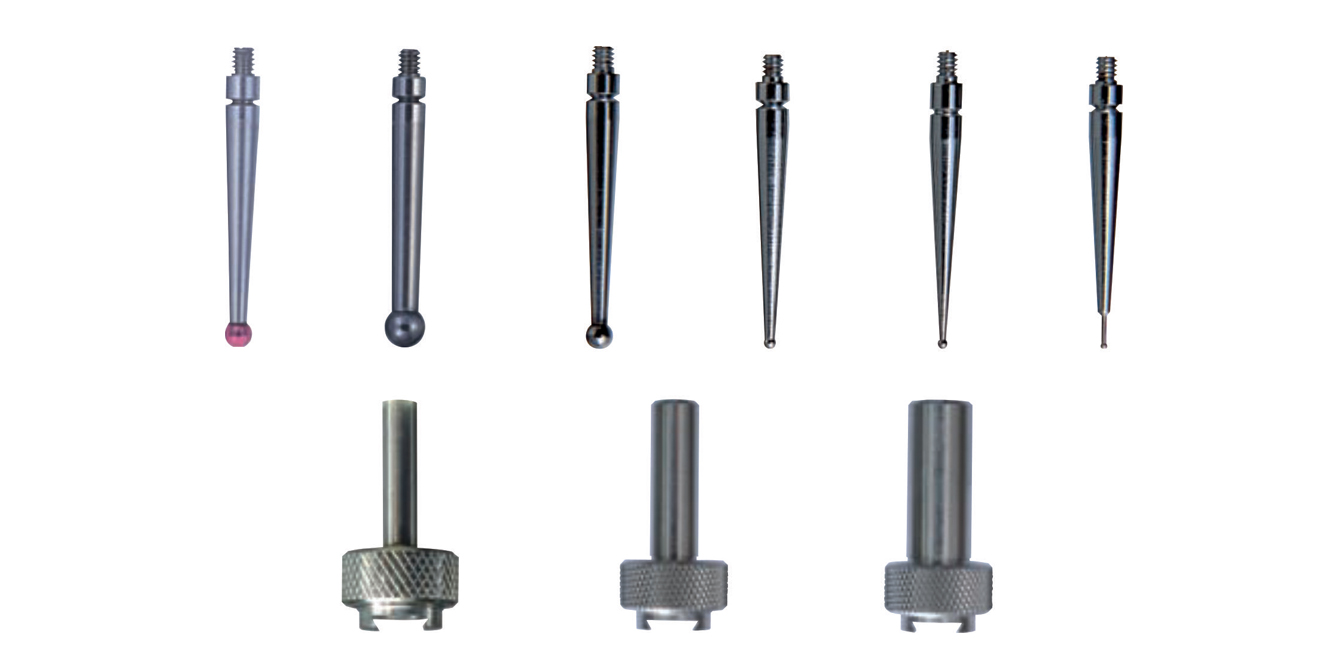

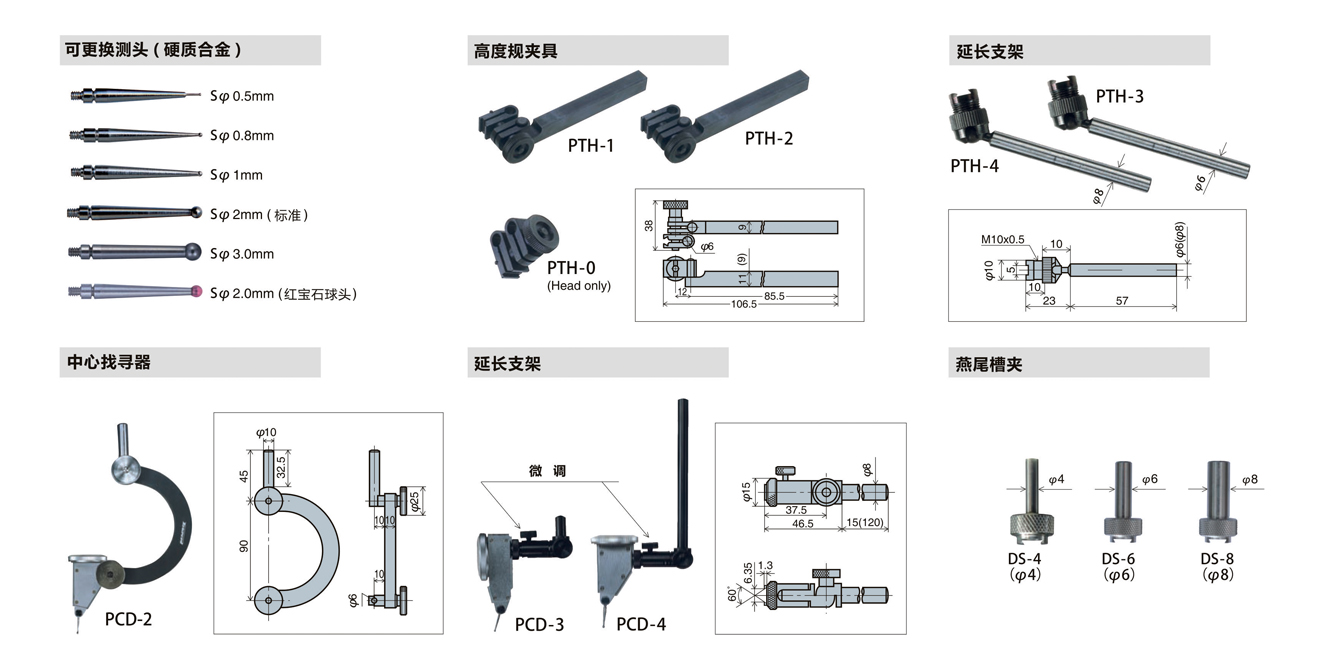

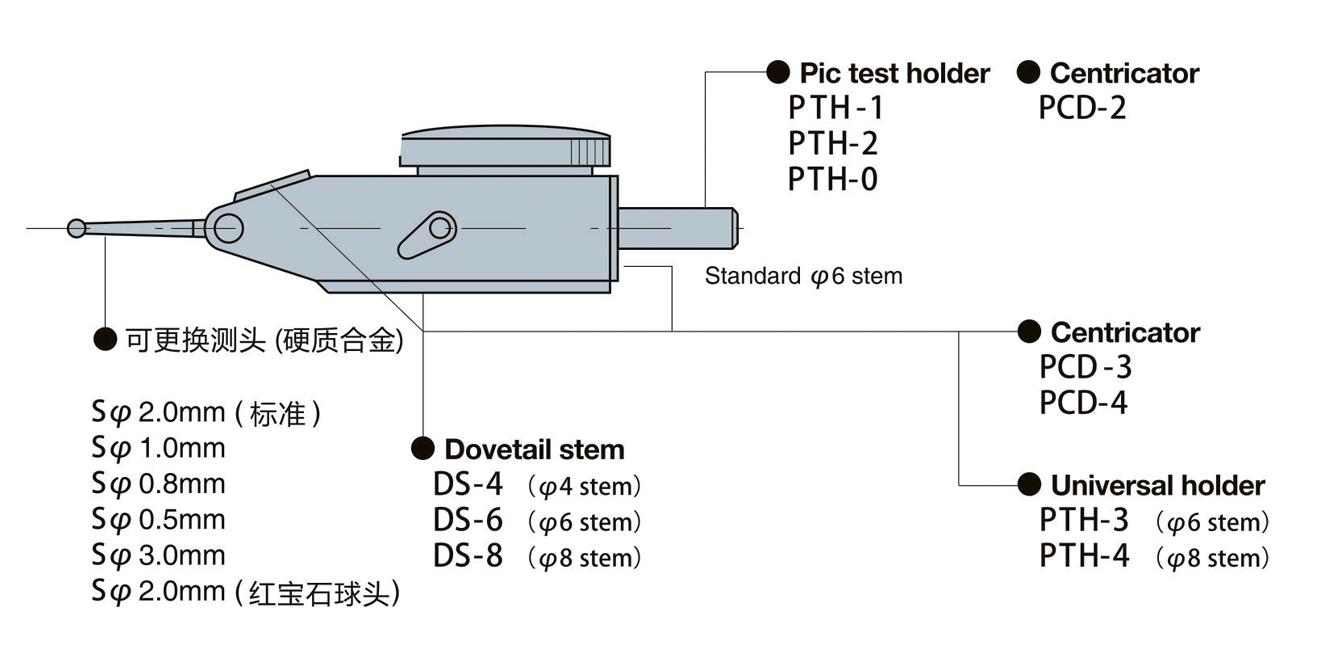

用途	可替换测头、高度规夹具、延长支架、中心找寻器、燕尾槽夹等一些用于杠杆式指示表的可选配件
特点	杠杆式指示表更丰富的测量功能

杠杆表可选配测头

型号	ø 球径(mm)	Ｌ (mm)	杆径ød (mm)	适用杠杆表型号
XP1A-3	3	18.2	2.5	PC-1A, PC-1AE, PC-3, PC-1AV
XP1A-2	2			PC-1A, PC-1AE, PC-3, PC-1AV
XP1A-2R(红宝石)	2			PC-1A, PC-1AE, PC-3, PC-1AV,PC-1AR
XP1A-1	1			PC-1A, PC-1AE, PC-3, PC-1AV
XP1A-0.8	0.8
XP1A-0.5	0.5
XP1B-3	3	19.24	2.5	PC-1B, PC-1BE, PC-1BW, PC-1BV
XP1B-2	2			PC-1B, PC-1BE, PC-1BW, PC-1BV
XP1B-2R(红宝石)	2			PC-1B, PC-1BE, PC-1BW, PC-1BV,PC-1BR
XP1B-1	1			PC-1B, PC-1BE, PC-1BW, PC-1BV
XP1B-0.8	0.8
XP1B-0.5	0.5
XP1L-3	3	39.72	3.0	PC-1L, PC-1LE, PC-1LV, PC-3L
XP1L-2	2			PC-1L, PC-1LE, PC-1LV, PC-3L
XP1L-2R(红宝石)	2			PC-1L, PC-1LE, PC-1LV, PC-3L,PC-1LR
XP1L-1	1			PC-1L, PC-1LE, PC-1LV, PC-3L
XP1L-0.8	0.8
XP1L-0.5	0.5
XP2-3	3	8.80	2.2	PC-2, PC-4, PC-2V
XP2-2	2			PC-2, PC-4, PC-2V
XP2-2R(红宝石)	2			PC-2, PC-4, PC-2V,PC-2R
XP2-1	1			PC-2, PC-4, PC-2V

杠杆表可选配测头(自动切换型)

型号	ø 球径(mm)	Ｌ (mm)	杆径ød (mm)	适用杠杆表型号
XN1A-3	3	17.74	2.5	PCN-1A, PCN-0,PCN-1AE PC-1AD,PCN-5,PCN-7A,PCN-1AV
XN1A-2	2			PCN-1A, PCN-0,PCN-1AE PC-1AD,PCN-5,PCN-7A,PCN-1AV
XN1A-2R(红宝石)	2			PCN-1A, PCN-0, PCN-1AE, PCN-1AD PCN-5, PCN-7A, PCN-1AU, PCN-5U PCN-1AV, PCN-1AR, PCN-5R
XN1A-1	1			PCN-1A, PCN-0, PCN-1AE, PCN-1AD PCN-5, PCN-7A, PCN-1AV
XN1A-0.8	0.8
XN1A-0.5	0.5
XN1B-3	3	18.63	2.5	PCN-1B, PCN-1BE, PCN-1BZ(A) PCN-1BZ(B), PCN-1BV
XN1B-2	2			PCN-1B, PCN-1BE, PCN-1BZ(A) PCN-1BZ(B), PCN-1BV
XN1B-2R(红宝石)	2			PCN-1B, PCN-1BE, PCN-1BU PCN-1BZ(A), PCN-1BZ(B), PCN-1BV, PCN-1BR
XN1B-1	1			PCN-1B, PCN-1BE, PCN-1BZ(A) PCN-1BZ(B), PCN-1BV
XN1B-0.8	0.8
XN1B-0.5	0.5
XN1L-3	3	39.00	2.5	PCN-1L, PCN-1LE, PCN-1LD PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
XN1L-2	2			PCN-1L, PCN-1LE, PCN-1LD PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
XN1L-2R(红宝石)	2			PCN-1L, PCN-1LE, PCN-1LD PCN-1LU, PCN-1LZ(A), PCN-1LZ(B) PCN-1LV PCN-1LR
XN1L-1	1			PCN-1L, PCN-1LE, PCN-1LD PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
XN1L-0.8	0.8
XN1L-0.5	0.5
XN2-3	3	14.18	2.2	PCN-2, PCN-2E, PCN-6 PCN-2Z(A), PCN-2Z(B), PCN-2V
XN2-2	2			PCN-2, PCN-2E, PCN-6 PCN-2Z(A), PCN-2Z(B), PCN-2V
XN2-2R(ruby ball)	2			PCN-2, PCN-2E, PCN-6, PCN-2U PCN-6U, PCN-2Z(A), PCN-2Z(B) PCN-2V PCN-2R, PCN-6R
XN2-1	1			PCN-2, PCN-2E, PCN-6 PCN-2Z(A), PCN-2Z(B), PCN-2V
XN2-0.8	0.8
XN2-0.5	0.5
XN2B-3	3	13.00	2.2	PCN-2B, PCN-2BD, PCN-7C PCN-SD, PCN-2BV
XN2B-2	2			PCN-2B, PCN-2BD, PCN-7C PCN-SD, PCN-2BV
XN2B-2R(ruby ball)	2			PCN-2B, PCN-2BD, PCN-7C PCN-SD, PCN-2BU, PCN-2BV, PCN-2BR
XN2B-1	1			PCN-2B, PCN-2BD, PCN-7C PCN-SD, PCN-2BV
XN2B-0.8	0.8
XN2B-0.5	0.5
XNS-3	3	8.13	2.2	PCN-S, PCN-SV, PCN-6S
XNS-2	2			PCN-S, PCN-SV, PCN-6S
XNS-2R(ruby ball)	2			PCN-S, PCN-SU, PCN-SV PCN-6S, PCN-SR
XNS-1	1			PCN-S, PCN-SV, PCN-6S
XNS-0.8	0.8
XNS-0.5	0.5
